Glass plays a pivotal role in modern architecture and design, influencing not only the aesthetics but also the functionality and safety of structures. Among the myriad types of glass available, tempered glass and laminated glass stand out due to their enhanced strength and safety features. Understanding the differences between these two types is crucial for architects, builders, and consumers alike. The debate over which is superior—tempered or laminated glass—continues to be a topic of significant interest. In this comprehensive analysis, we delve into the properties, applications, and advantages of both tempered and laminated glass. Notably, PVB laminated glass has gained attention for its exceptional properties. This article aims to provide an in-depth comparison to aid in making informed decisions regarding glass selection.
Tempered glass, also known as toughened glass, is a type of safety glass processed through controlled thermal or chemical treatments. These treatments increase its strength compared to normal glass. Tempering puts the outer surfaces into compression and the interior into tension. Such stresses cause the glass, when broken, to crumble into small granular chunks instead of splintering into jagged shards. This granularity reduces the likelihood of injury.
The creation of tempered glass involves heating the glass to above 600°C and then rapidly cooling it. This process is known as quenching. The rapid cooling solidifies the outer surfaces before the interior cools, inducing compressive stresses on the surface and tensile stresses inside. The precise control of heating and cooling rates is essential to achieve the desired strength and stability.
Tempered glass is approximately four times stronger than annealed glass of the same thickness. Its increased strength makes it more resistant to impact and thermal stresses. The safety feature of crumbling into small pieces upon breakage is particularly valuable in preventing serious injuries in case of accidents.
Laminated glass is a type of safety glass that holds together when shattered. In the event of breaking, it is held in place by an interlayer, typically made of polyvinyl butyral (PVB), between its two or more layers of glass. The interlayer keeps the layers of glass bonded even when broken, and its high strength prevents the glass from breaking up into large sharp pieces.
The manufacturing of laminated glass involves bonding layers of glass with an interlayer under heat and pressure. The most common interlayer material is PVB, but others like ethylene-vinyl acetate (EVA) and SentryGlas® Plus (SGP) are also used. The process ensures that even if the glass cracks, the fragments adhere to the interlayer, maintaining the structural integrity.
Laminated glass is renowned for its safety and security features. The interlayer provides elasticity and impact resistance, enhancing its ability to withstand force. Additionally, laminated glass offers sound insulation and blocks most ultraviolet radiation, protecting interiors from fading.
Tempered glass excels in strength due to its surface compression, making it resistant to direct impacts. However, once the integrity is compromised, it shatters completely. Laminated glass, while not as strong on the surface, provides superior safety upon breakage. The interlayer holds the shards together, reducing the risk of injury and maintaining a barrier against elements.
Tempered glass is commonly used in applications where strength and resistance to thermal stress are important, such as in vehicle windows, building facades, shower doors, and cookware. Laminated glass is preferred for applications requiring enhanced safety and security, like in windshields, skylights, and areas prone to natural disasters or potential break-ins. Its ability to block UV light and reduce noise makes it ideal for residential and commercial buildings.
Laminated glass tends to offer better durability over time due to the protective interlayer, which shields against environmental factors. Tempered glass, while strong, can suffer from surface scratches or abrasions that may compromise its strength. The interlayer in laminated glass also provides an additional barrier against moisture and UV degradation.
Generally, laminated glass is more expensive than tempered glass due to the additional materials and manufacturing processes involved. The choice between the two often depends on the specific requirements of a project, balancing cost with safety and performance needs.
Among laminated glass types, Sound Insulation PVB laminated glass is particularly noteworthy. The PVB interlayer enhances the glass's ability to absorb impact energy, providing superior safety and sound insulation. It also filters out up to 99% of UV radiation, protecting interior furnishings from fading. The versatility of PVB laminated glass makes it suitable for a wide range of applications, from residential windows to high-security installations.
Laminated glass contributes positively to environmental performance. Its UV-blocking capabilities reduce heat gain from sunlight, potentially lowering cooling costs. The acoustic dampening properties of the interlayer make laminated glass an excellent choice for buildings in noisy urban areas, enhancing occupant comfort by minimizing external noise.
Tempered glass, while strong, does not offer significant acoustic insulation or UV protection. Therefore, for projects where energy efficiency and noise reduction are priorities, laminated glass is the preferred option.

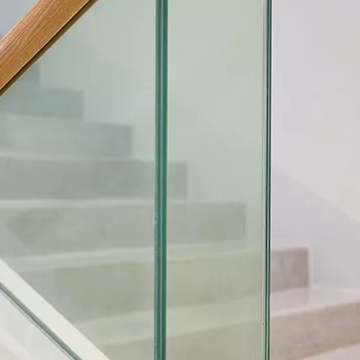

Building codes and safety regulations often dictate the type of glass to be used in specific applications. Laminated glass is typically required in areas where impact resistance and post-breakage integrity are critical, such as overhead glazing and railings. Tempered glass is acceptable in situations where the risk of human impact is lower but where thermal stress resistance is needed.
Understanding and complying with local regulations ensures not only the safety of occupants but also the legal compliance of the building project.
Determining whether tempered or laminated glass is better depends on several factors:
Safety Requirements: For maximum safety, especially in high-risk areas, laminated glass is preferable.
Budget Constraints: Tempered glass is generally more cost-effective.
Noise Reduction: Laminated glass offers superior acoustic insulation.
UV Protection: Laminated glass blocks most UV radiation.
Structural Needs: The choice may depend on the structural role of the glass in the design.
Consulting with glass manufacturers and suppliers, such as Reach Building, can provide valuable insights tailored to specific project needs. Their expertise in both tempered and laminated glass products ensures that clients receive the most suitable solutions.
In the tempered versus laminated glass debate, there is no one-size-fits-all answer. Each type has its strengths and ideal applications. Tempered glass offers excellent strength and is suitable for many standard applications where safety glass is required. Laminated glass, particularly when utilizing PVB interlayers, provides enhanced safety, security, noise reduction, and UV protection. Ultimately, the decision should be based on the specific requirements of the project, considering factors such as safety, environmental impact, and cost. By understanding the distinct characteristics of each glass type, stakeholders can make informed decisions that align with both their functional needs and aesthetic preferences.
For expert advice and high-quality products, consider reaching out to manufacturers specializing in advanced glass solutions. Their knowledge and product offerings can significantly impact the success and safety of your architectural endeavors.
