| Quantity: | |
|---|---|
| Thickness | 3-20mm (Other thicknesses available upon request) |
| Color | Gray, bronze, green, light blue, blue-gray, or neutral tones,etc |
| Tint Density (LT) | 10%–80% |
| UV Protection | 99% blockage |
| Solar Heat Gain Coefficient (SHGC) | 0.2 to 0.7 |
| Light Reflectance | 5% to 30% |
| Thermal Conductivity | 1.0 to 1.2 W/m²·K |
| Visible Light Transmission (VLT) | 10% to 50% |
| Temper Strength | 4–5 times stronger than annealed glass |
| Maximum Size | 12000mm x 3600mm (Custom sizes available) |
| Minimum Size | 150mm x 150mm(Custom sizes available) |
| Delivery time | 7 days |
1. Characteristics of Ions tinted glass
High Strength and Safety: As a tempered glass, it undergoes a thermal treatment that creates surface compression, making it 4-5 times stronger than standard glass. In case of breakage, it shatters into small, blunt particles, reducing injury risks.
Uniform Color and High Transparency: The float process allows for a smooth, uniform thickness and clarity, while metal ions tinting provides consistent, even color. This creates a clean, modern appearance and ensures consistent light transmission.
Weather Resistance and UV Protection: The Ions tinted provides the glass with superior resistance to environmental wear and UV radiation. This helps protect interiors from UV damage and prolongs the lifespan of the glass.
Thermal Efficiency: Metal ion tinting can improve the thermal insulation properties of the glass, reducing solar heat gain and improving energy efficiency, which is beneficial for climate control in buildings.
2. Manufacturing Process of Ions Tinted Glass
Float Glass Production: In the float glass process, molten glass is floated on a bed of molten tin, creating a smooth, flat surface and uniform thickness.
Metal Ion Doping: Metal ions such as iron, copper, cobalt, and nickel are added during the glass melting phase. These ions impart color to the glass, ranging from shades of green, gray, bronze, and blue, while also enhancing UV resistance and glare control.
Tempering Process: After the float and tinting processes, the glass is tempered by heating it to high temperatures and then rapidly cooling it, enhancing its strength and safety characteristics.
3. Benefits of Float Metal Ion Tinted Tempered Glass
Energy Efficiency: The metal ion tint reduces solar heat gain, lowering the need for air conditioning in buildings, thus enhancing energy efficiency.
Enhanced Privacy and Glare Reduction: The tinted glass offers better privacy while reducing glare, making it suitable for both exterior and interior applications.
Aesthetic Versatility: Available in a range of colors and metallic hues, this glass adds a modern, elegant look to both residential and commercial spaces.
Durability and Safety: As tempered glass, it is highly resistant to impact, temperature fluctuations, and environmental wear, making it ideal for high-traffic and exposed environments.
4. Common Colors and Effects in Float Metal Ion Tinted Tempered Glass
Gray: Popular in architectural applications, it provides privacy and a neutral tone that blends with various design themes.
Green: Adds a natural, calming effect and is effective at blocking sunlight, making it a common choice for large glass facades.
Bronze: Often used for a warm, luxurious look, suitable for both modern and classic architectural designs.
Blue: Known for its cooling effect on spaces, blue-tinted glass helps reduce glare and solar heat, making it ideal for skylights and windows in sunny climates.

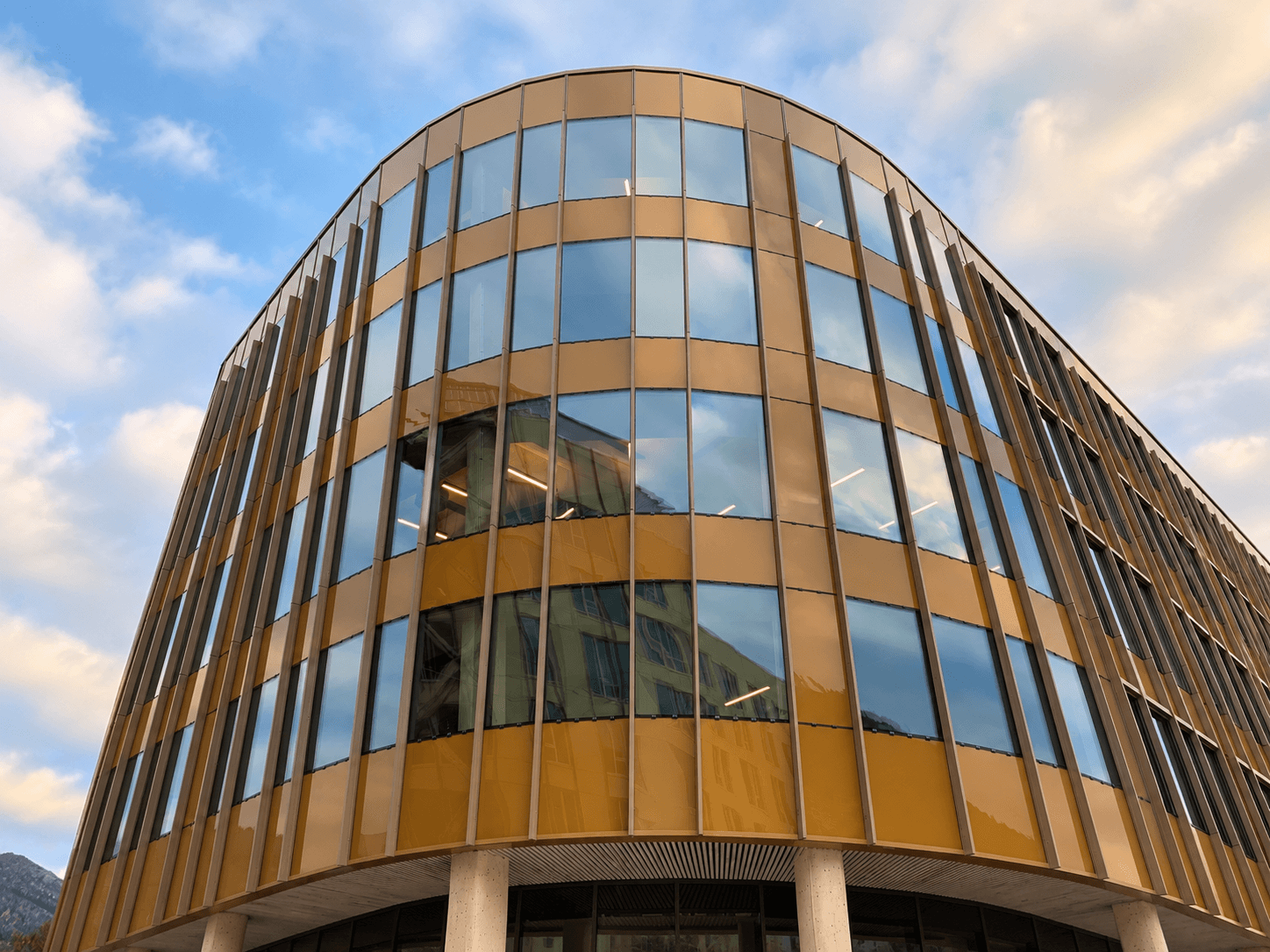

Building Facades & Curtain Walls: Ions tinted glass is widely used in the facades and curtain walls of commercial and residential architectral. The metallic or tinted finish enhances the building's aesthetics, giving it a modern, high-end appearance. In addition, the glass reduces solar heat gain and glare, improving energy efficiency and indoor comfort.

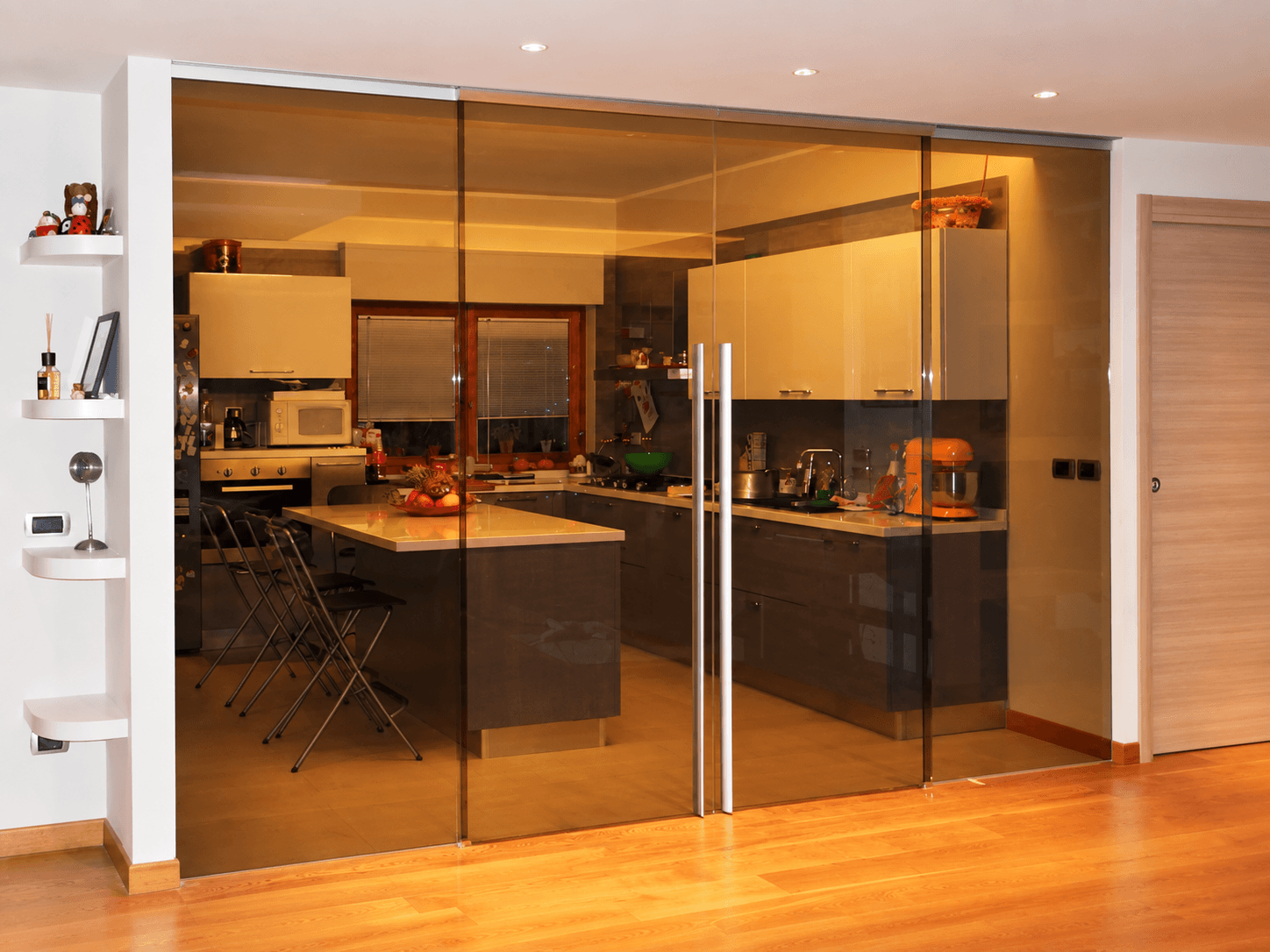

Windows & Doors: Ions tinted glass is used in windows and doors to provide additional privacy while maintaining natural light. The colored tint not only enhances the look but also reduces the amount of visible light that enters, which can be especially useful in offices or residential areas exposed to intense sunlight.

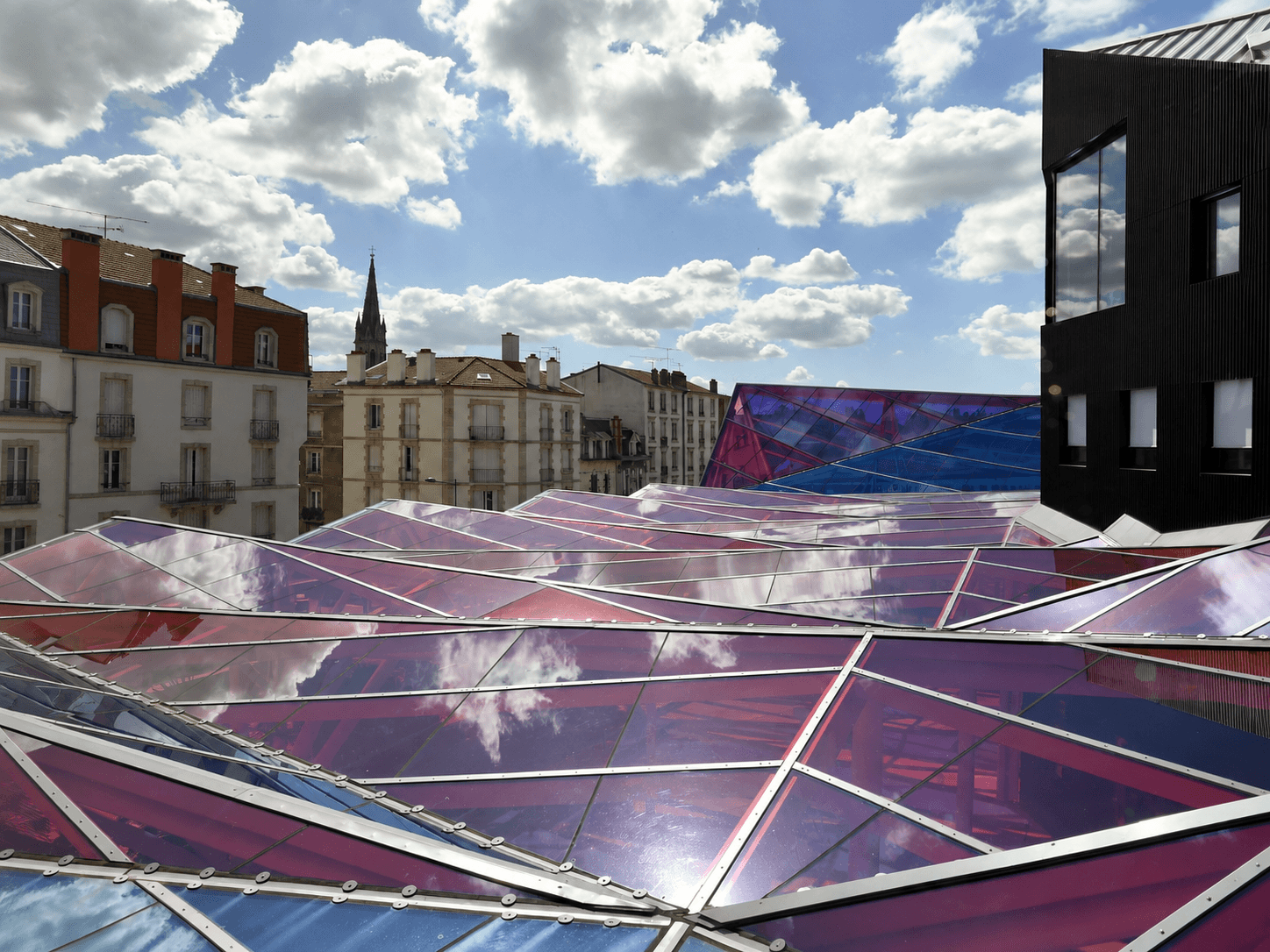

Skylights and Roof Glazing: Colored ions tinted tempered glass can be used in skylights or roof glazing to provide UV protection and glare control while still allowing natural light to filter into the building.

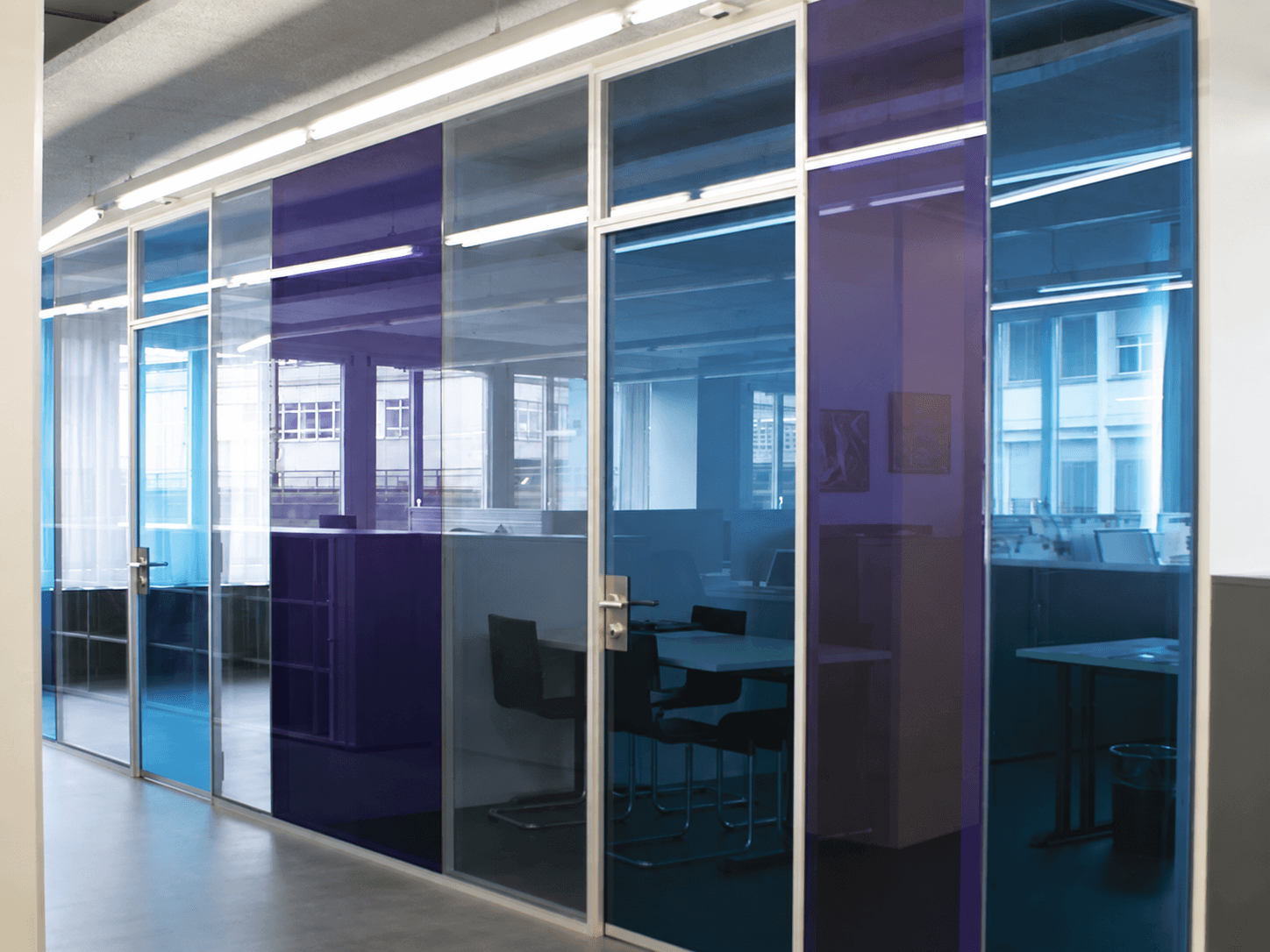

Partition Walls & Office Dividers: In commercial and office spaces, ions tinted glass can be used as partition walls or office dividers. This provides a sleek, modern look while ensuring privacy for employees and clients.
Interior Doors and Shower Screens: Colored ions tinted tempered glass is increasingly used in interior doors and shower enclosures. The aesthetic properties, along with the glass's durability and safety features, make it an attractive choice for high-end interior applications.
Furniture: Colored tinted tempered glass is often used in the design of furniture such as glass tabletops, glass shelving, and side tables. The glass adds a contemporary and luxurious feel while maintaining durability.
Wall Panels and Decorative Elements: Colored tempered glass panels are increasingly used as decorative features in interior walls, adding texture and color to a space while serving as functional barriers or partitions.
Signage: Colored ions tinted tempered glass can be used for both exterior and interior signage. Its aesthetic appeal, combined with its durability, makes it ideal for high-end, modern signs in commercial or corporate settings.
Green Building Facades: With the rise of eco-friendly and sustainable architecture, metal-tinted tempered glass is increasingly being used in "green" buildings to improve energy efficiency. The tinted glass helps reduce solar heat gain, glare, and the need for artificial lighting, all contributing to lower energy consumption.
Surface Treatments:
Edge Treatment: Flat edge, rounded edge, or beveled edge
Drilling: Available for mounting or installation purposes
Sandblasting: Can be sandblasted for decorative finishes
Brushed Finish: Available for a matte surface texture
Packaging: used wooden boxes or cases, the cases should be easy loading, unloading and transportation. Each case needs to be packed with stuff of the same thickness and size.
Q: What are the comparative advantages of using float metal ion tinted tempered glass over traditional tinted or coated glass in high-rise buildings?
A:
Aspect | Float Metal lon Tinted Tempered Glass | Traditional Tinted or Coated Glass |
Uniformity and Clarity | Consistent clarity and thickness across large spans | Potential for minor inconsistencies |
Durability | Color and properties embedded within glass,highly durable | Surface coatings more susceptible to wear and fading |
Energy Efficiency | Optimized for solar control and light transmission | Effective but may degrade faster |
UV Protection | Long-lasting,integrated UV resistance | Coatings may lose effectiveness under intense UV exposure |
Strength and Safety | Highly impact-resistant,safe breakage pattern | May lack strength if untempered; coatings can affect strength |
Aesthetic Versatility | Modern,vibrant colors with consistent transparency | Colors may lose vibrancy or consistency over time |
Maintenance | Low maintenance with long-lasting color and performance | Higher maintenance for appearance and coating upkeep |
