Frameless glass railings offer a sleek, modern aesthetic with unobstructed views, making them popular for balconies, staircases, and terraces. However, their design requires careful selection of materials and structural considerations. Below are the critical factors to evaluate when choosing glass and aluminum for a frameless system.

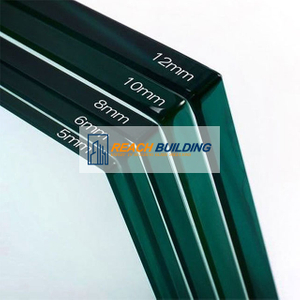

Tempered Glass (Required)
Minimum thickness: 10mm to 12mm (residential), 12mm to 15mm+ (commercial/high-traffic).
Why? Shatters safely into small granules (no sharp edges).
Laminated Glass (Recommended for Extra Safety)
Why? PVB interlayer holds glass together if broken. Best for: High-risk areas (balconies, pool decks).
Toughened Laminated Glass (Best for High-Impact Zones)
Combines tempering + PVB layer for maximum safety.
Polished Edges (Seamless Look) – Prevents chipping, improves aesthetics.
Flat vs. Beveled Edges – Beveled edges add a refined touch.
Clear Glass – Maximizes transparency.
Low-Iron Glass (Ultra-Clear) – Reduces green tint for premium clarity.
Tinted or Reflective Glass and – Reduces glare and heat absorption.
Since frameless railings rely on minimal hardware, aluminum must provide strong yet discreet support.
Base Channels (U-Shaped or L-Shaped)：Secures glass at the bottom (minimal visible metal).
Material: 6063-T5 or 6061-T6 aluminum ：(high strength, corrosion-resistant).
Clamps (Spigots or Standoffs)：Stainless steel is common, but aluminum clamps with anti-corrosion coating are also used.
Powder-Coated Aluminum ：(Most Common) Durable, UV-resistant, available in black, bronze, silver, custom colors.
Anodized Aluminum：More scratch-resistant, metallic sheen (silver, gold, dark bronze).
Post Spacing: Typically 3 to 4 feet (depends on glass thickness & wind load).
Anchoring System: Must be structural (embedded in concrete or bolted securely).
Wind Load Resistance: Critical for high-rise balconies (consult engineer).
Region | Minimum Height | Notes |
USA (IRC) | 36" (residential) | 42" for commercial |
Canada | 42" (most provinces) | Check local codes |
Europe (EN Standards) | 1100mm (~43") | Varies by country |
Must withstand at least 200 lbs lateral force (per IRC/IBC).
Glass should not deflect excessively under pressure.
Some codes require a top rail (aluminum or stainless steel) for added safety.
Alternative: A structural glass "cap" (thicker edge) can sometimes replace a handrail.
Precision Leveling: Glass panels must align perfectly to avoid stress points.
Proper Gaskets & Spacers: Prevent glass-metal contact (thermal expansion).
Professional Installation Required: DIY errors can lead to failure.
Glass: Clean with non-abrasive, ammonia-free solutions (prevents streaks).
Aluminum Channels/Clamps: Inspect annually for loosening or corrosion.
Silicone Sealant Check: Reapply if cracking occurs (prevents water ingress).
Factor | Impact on Cost |
Glass Thickness | 12mm+ = More expensive |
Laminated vs. Tempered | Laminated adds ~20-30% cost |
Aluminum Finish | Anodized > Powder-Coated |
Custom Clamp Design | Minimalist hardware = Higher cost |
Installation Complexity | Structural anchoring increases labor |
True Frameless (Clamp-Based) – Cleanest appearance (glass appears to float).
Semi-Frameless (Discreet Channels) – Slightly more visible structure.
Silicone Joints – Nearly invisible, flexible.
Metal Corner Connectors – More industrial look.
LED Strip in Base Channel – Enhances nighttime aesthetics.
Conclusion: Best Practices for Frameless Glass & Aluminum Railings
✅ Use 12mm+ tempered or laminated glass for safety.
✅ Choose high-grade aluminum (6063-T5/6061-T6) for durability.
✅ Ensure proper anchoring & spacing to meet wind/load requirements.
✅ Opt for powder-coated or anodized aluminum for longevity.
✅ Hire experienced installers to avoid alignment issues.
Benefits: Strength and safety: Four to five times stronger than ordinary glass, tempered glass is safer as it shatters into small, blunt pieces when broken, reducing injury risk. Durability: Withstands high wind loads and thermal stresses, ideal for areas with harsh environmental conditions. Limitations: Cannot be cut or altered once treated, so precise planning is necessary before installation. | Benefits: Safety: In case of breakage, laminated glass holds together, preventing large, sharp shards from falling. Sound insulation: The interlayer helps reduce noise transmission, making it effective for buildings near busy streets. UV protection: Reduces UV radiation, which can prevent interior fading and damage. Limitations: More expensive than standard glass and may be heavier, requiring stronger support structures. |
3. Hard Coating Online Reflective Glass Benefits: Solar control: Reduces heat gain from sunlight, helping to maintain a comfortable interior temperature. Aesthetic value: Provides a sleek, reflective finish that enhances the visual appeal of the building. Privacy: Reflective glass offers a level of privacy by making it difficult to see inside the building during the day. Limitations: Can affect the amount of natural light entering the building, and the reflective surface can create glare in the surrounding environment. |
